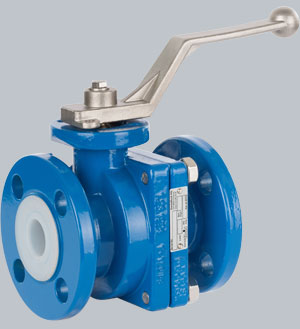

Ball Valves SBV

Fully lined Ball Valves for shut-off and control of corrosive, permeating liquids or gaseous media.

Main features

• Two-piece body, metal-to-metal joint
• Anchored lining with positive locking to body
• Dynamic, maintenance-free shaft sealing acc. to    TA-Luft
• One-piece ball/shaft, blow out proof, core of SS    Duplex
• Rated breaking point outside of valve
• Bodies with optional flange connections PN40
• Ball options such as V-port, C-port, with pressure    relief hole
• ISO top flange for direct mounting of pneum.    quarter turn actuators
  ball valves sbv


Technical data

Version DIN / ISO ANSI
Sizes

DN15 – DN150
full port
½" – 6"
full port
  DN150 – DN250
reduced port
6" – 10"
reduced port
Flanges

EN 1092-1 B1
PN16 / PN40
ASME B16.5 RF
ANSI 150lbs
Face to face EN 558-1 series 1 ASME B16.10
Body Cast steel 1.0619 ASTM A216 WCB
Lining PFA, PFA-AS (conductive)
Ball PFA, PFA-AS-encapsulated (conductive)
Operating conditions (depending on material selection)
Pressure up to 16 bar
Temperature -40°C up to +200°C


Options

Body Stainless steel casting 1.4408 AISI 316 CF-8M
Lining ETFE
Ball PVDF, ETFE, SS Duplex solid, Titanium Grade 2, Hastelloy C,
V-Port, C-Port
Handlever Padlock

Detailed specification/options acc. to the data sheet.


swissfluid ag swissfluid ag

Downloads

pdf Data sheet
pdf Data sheet Ceramic Ball
pdf TA-Luft
