Sight Glasses SSP

Fully lined Sight Glasses as reliable flow indicators for virtually all existing process media in either liquid or even gaseous state.

Main features

• Heavy-duty, proven construction -
   maintenance-free
• Horizontal or vertical installation
• For liquids, gases and steam
• Large observation opening
• Standard drip ledge indicating even lowest flow

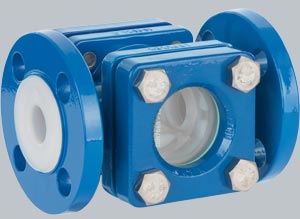

  sight glasses ssp


Technical data

Version DIN / ISO ANSI
Sizes DN15 – DN150 ½" – 6"
Flanges

EN 1092-1 B1
PN16
ASME B16.5 RF
ANSI 150lbs
Face to face EN 558-1 series 1 ASME B16.10
Body/cover Cast steel 1.0619 ASTM A216 WCB
Lining PFA, PFA-AS (conductive)
Glass plates Borosilicate acc. to DIN 7080
Gasket (outer) C-4400 asbestos-free
Operating conditions (depending on material selection)
Pressure 1 mbar up to 16 bar (40 bar)
Temperature -40°C up to +200°C


Options

Body/cover Stainless steel casting 1.4408 AISI 316 CF-8M
Body Stainless steel casting 1.4404 AISI 316L CF-3M
Glass protection FEP-foil for HF service (hydrofluoric)
Flow indication visual indication for gases (PTFE ribbon, rotor)

Detailed specification/options acc. to the data sheet.
